Encapsulated:
A Chess Set
5 Week Project
Spring 2026

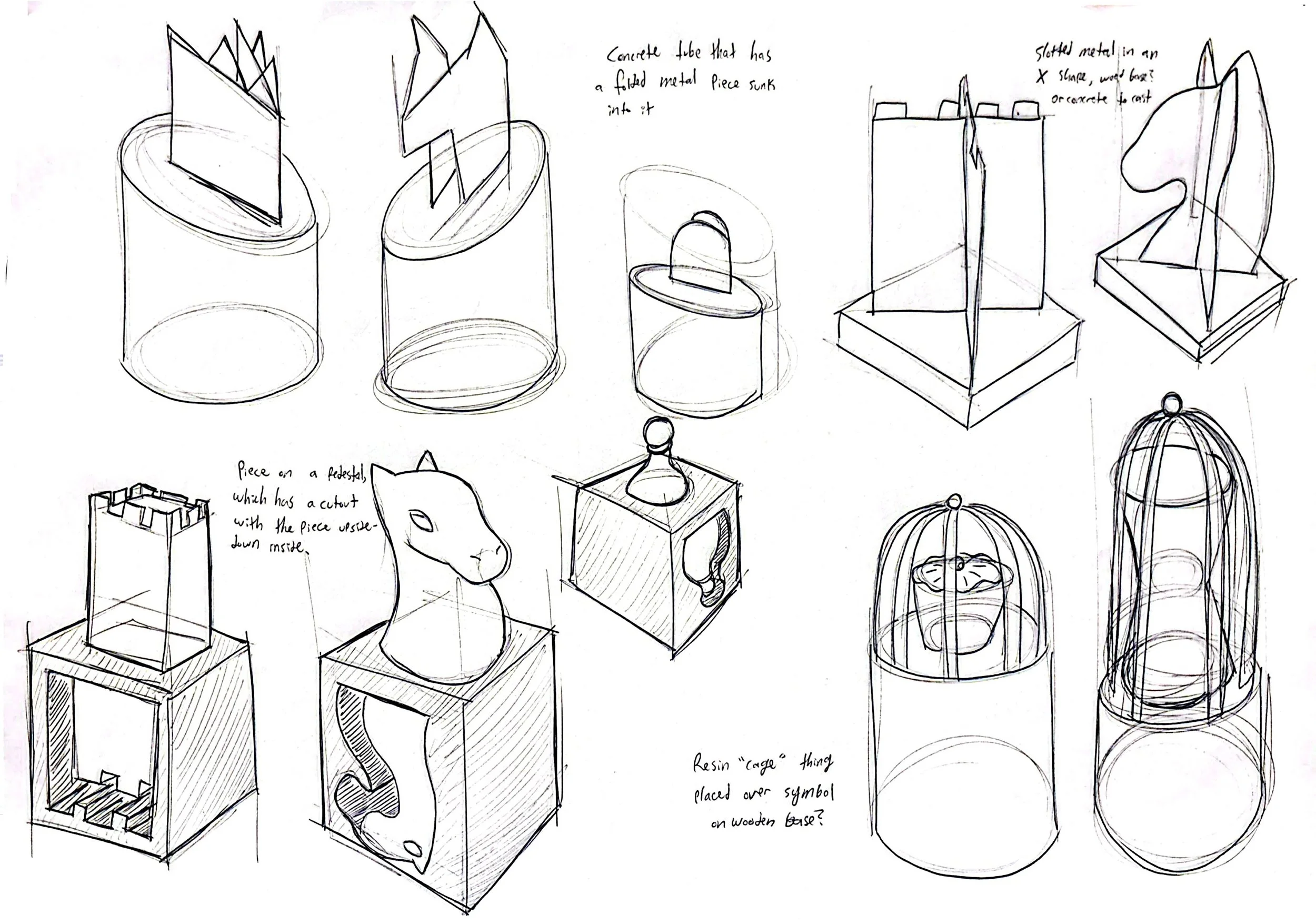

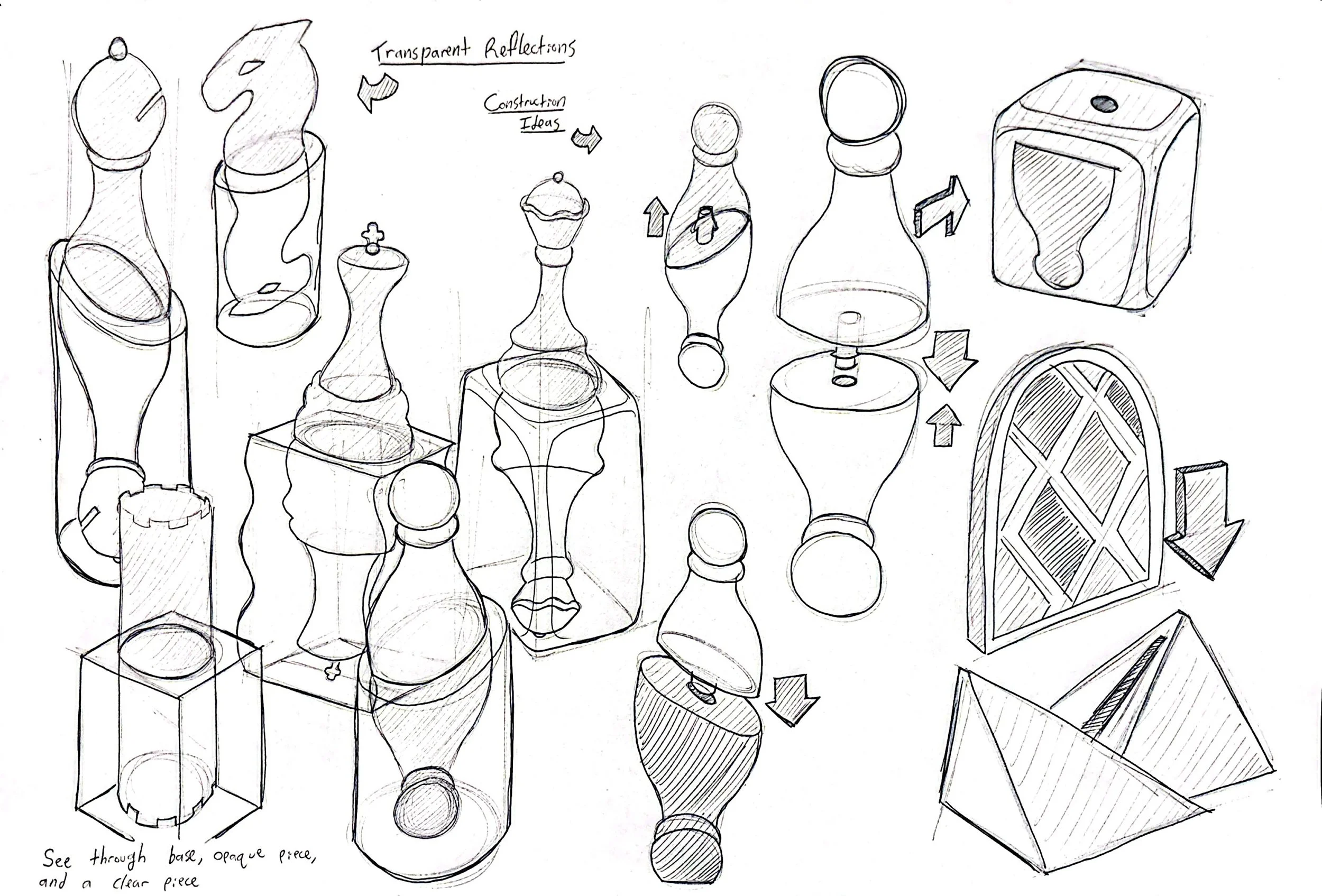

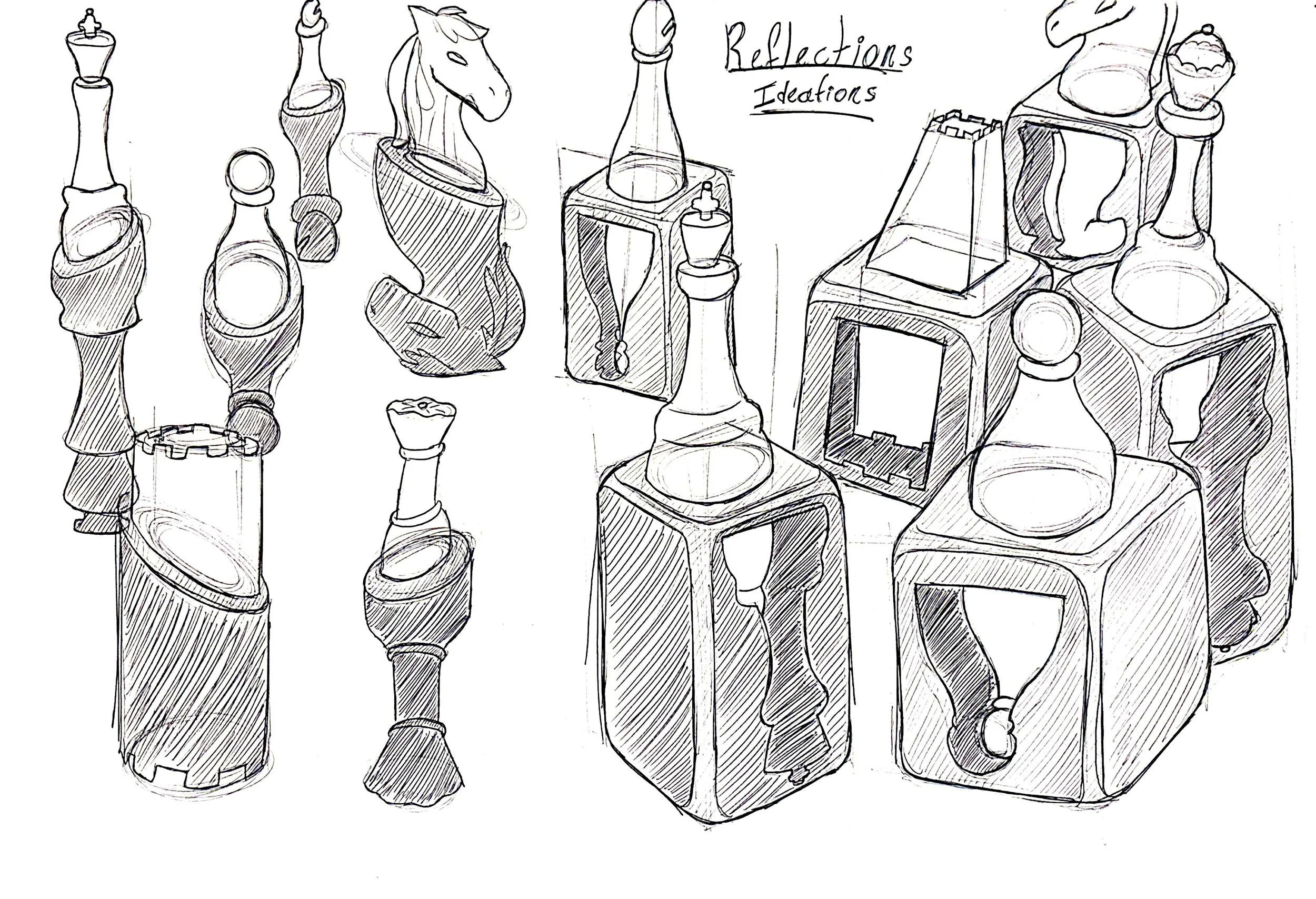

Sketch Ideations
My first idea was one of reflections. I wanted to have multiple pieces contained within one, and this sparked the idea of having a portable chess set, perfect for playing outside. Many of these early ideations were not feasible given the time frame, causing me to simplify the design into something minimalistic and elegant.
Prototyping and Casting

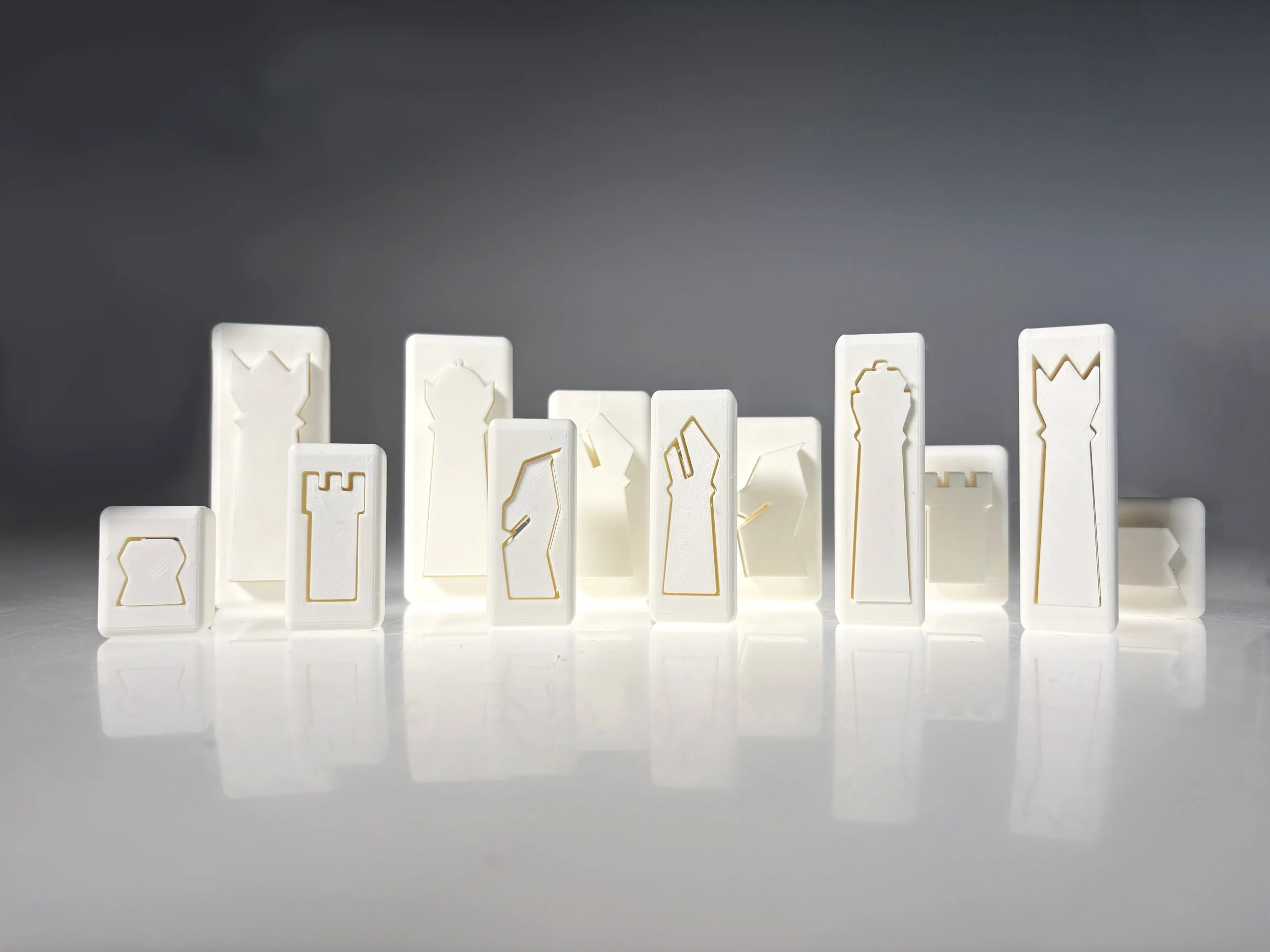

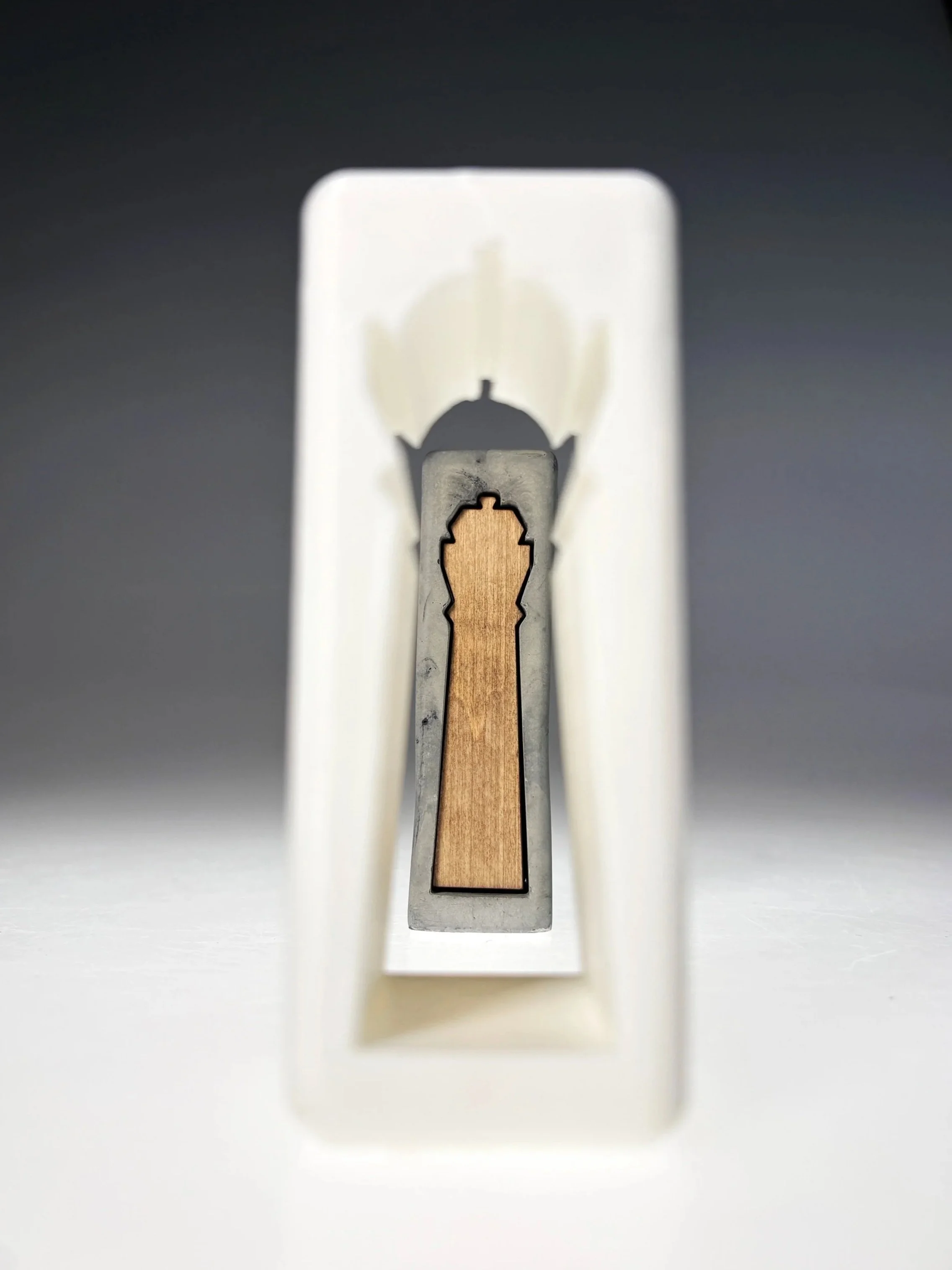

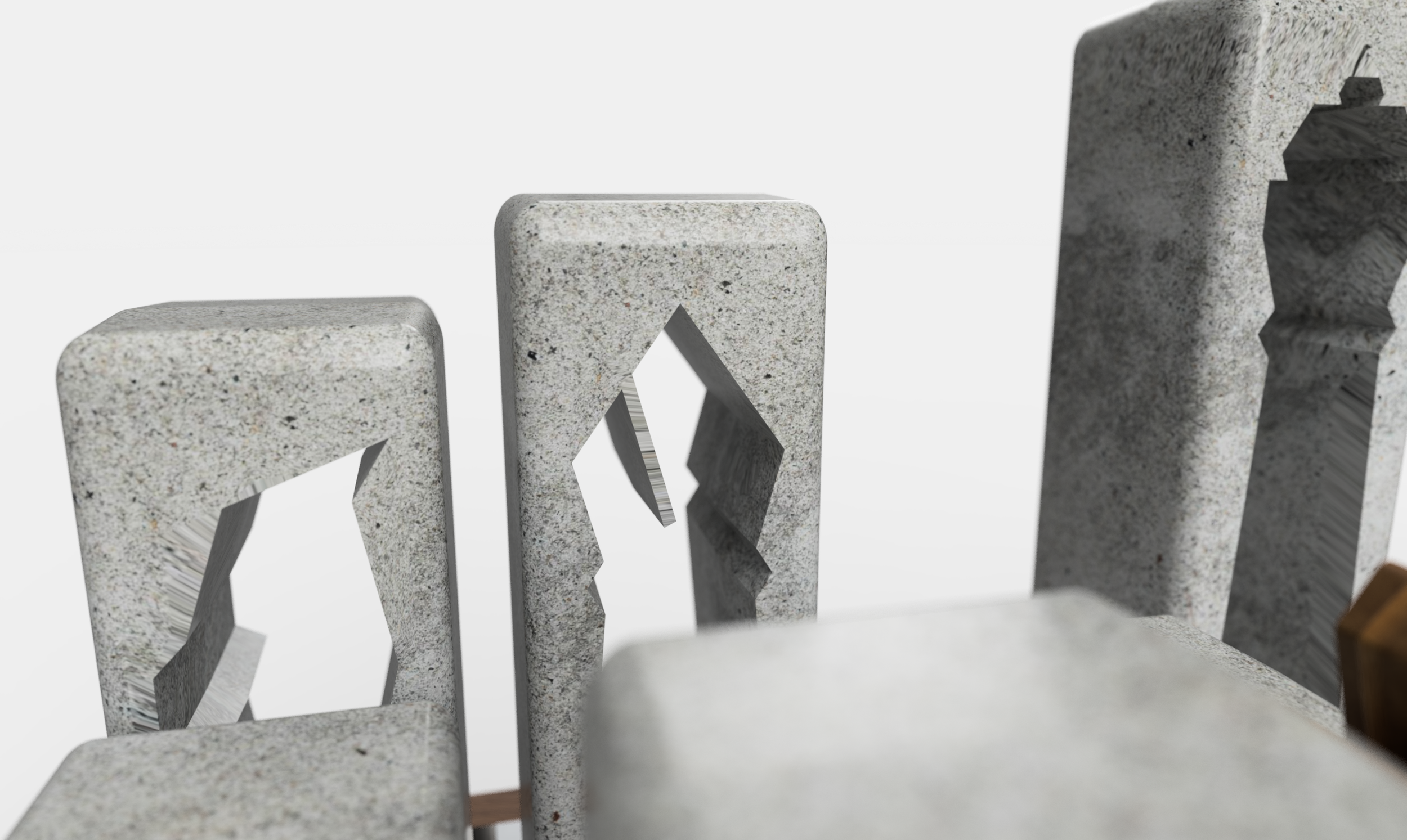

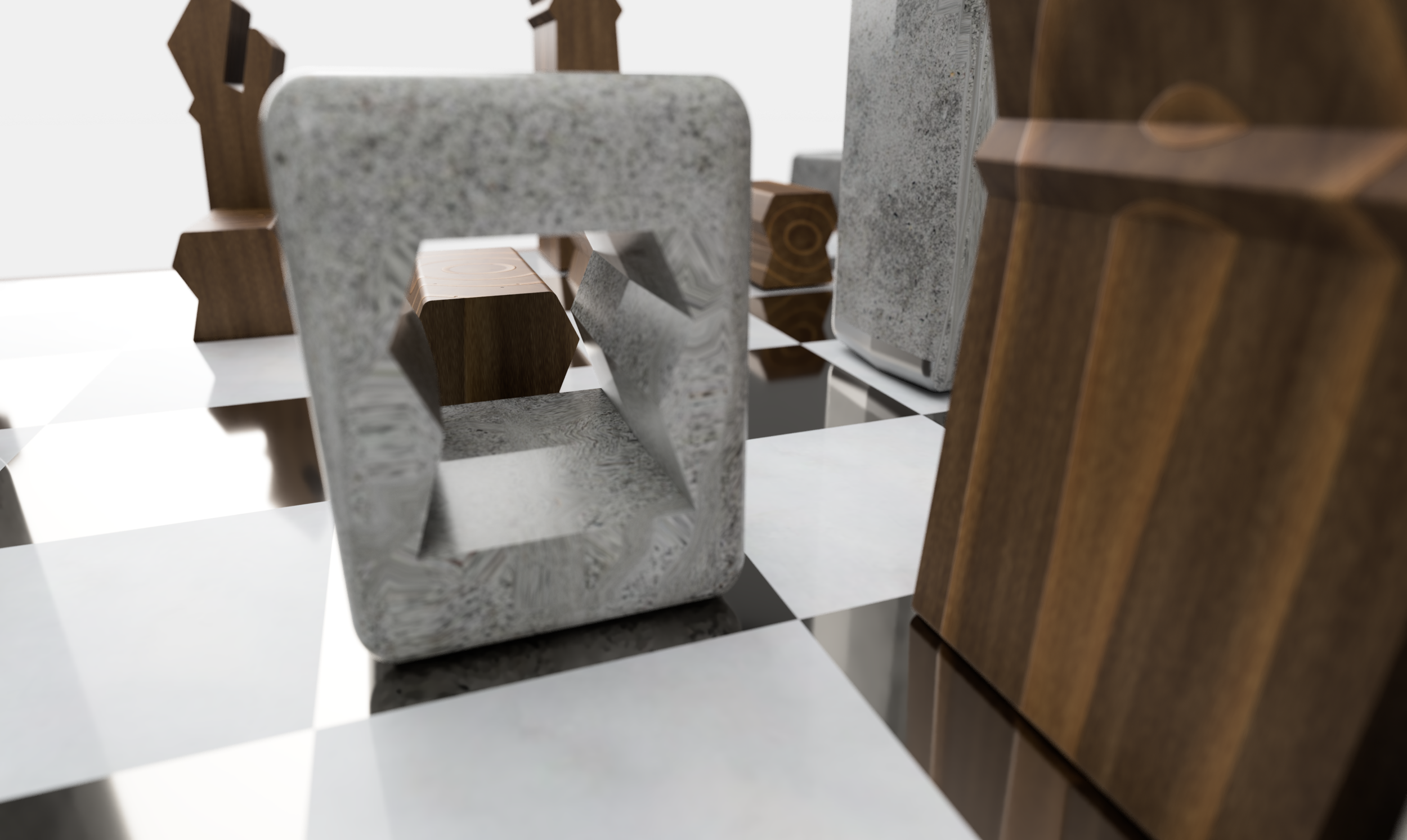

To begin creating physical objects, I started in Fusion 360 to create models of each piece. I then 3D printed many models, varying slightly in dimensions and form, until I found the perfect pieces to cast. I wanted the cutouts to be angular in nature to juxtapose the rounded edges of the blocks they are contained in.

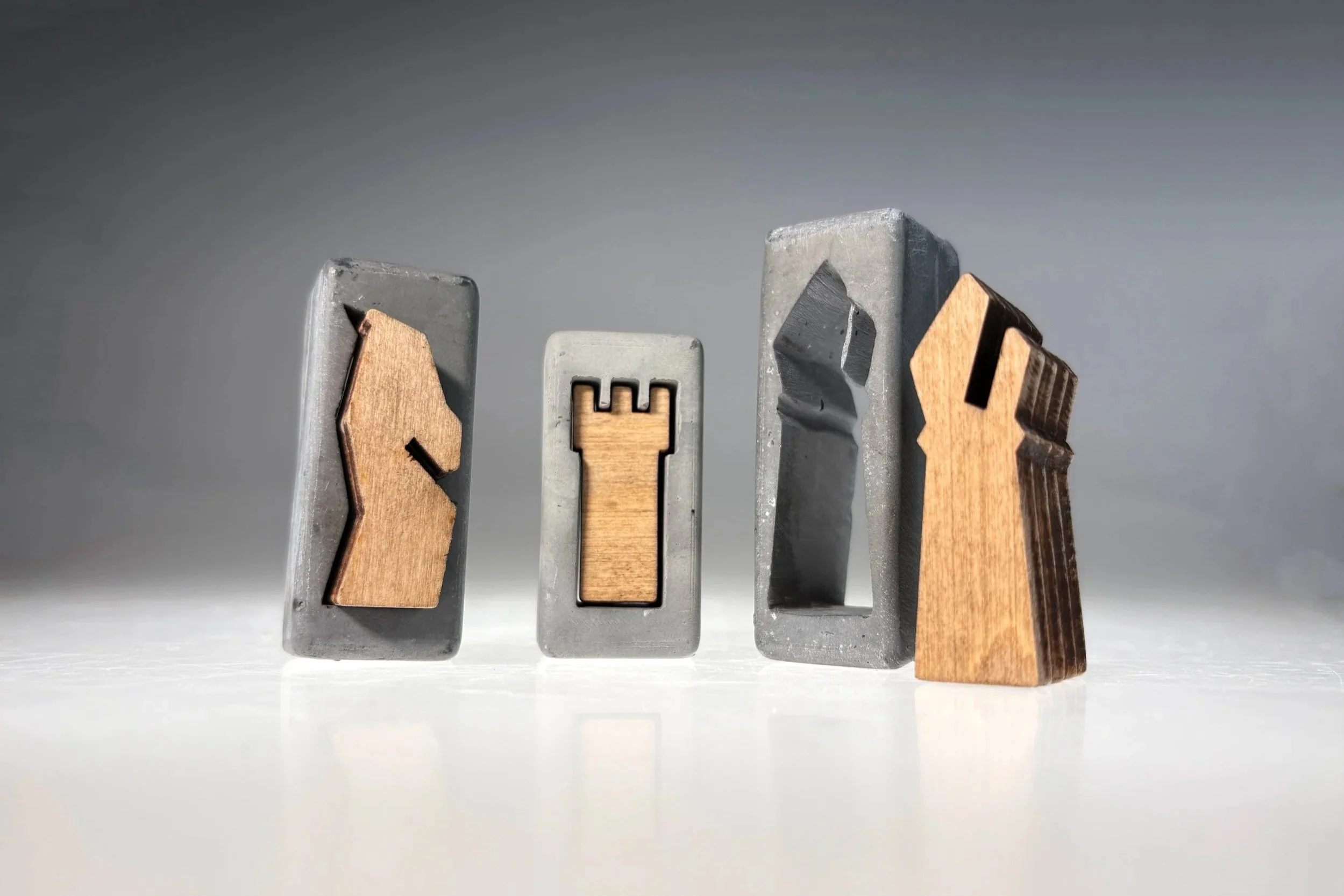

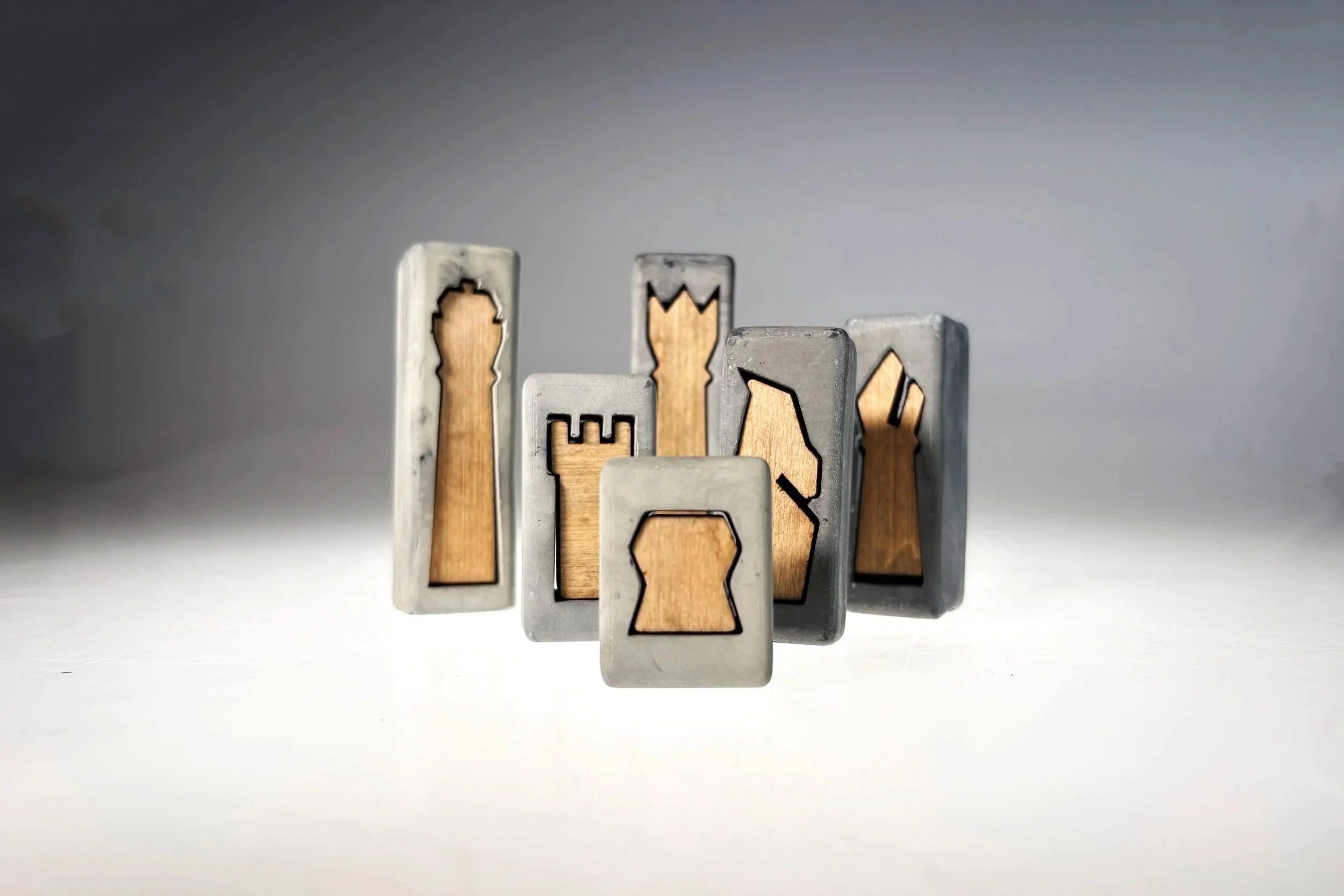

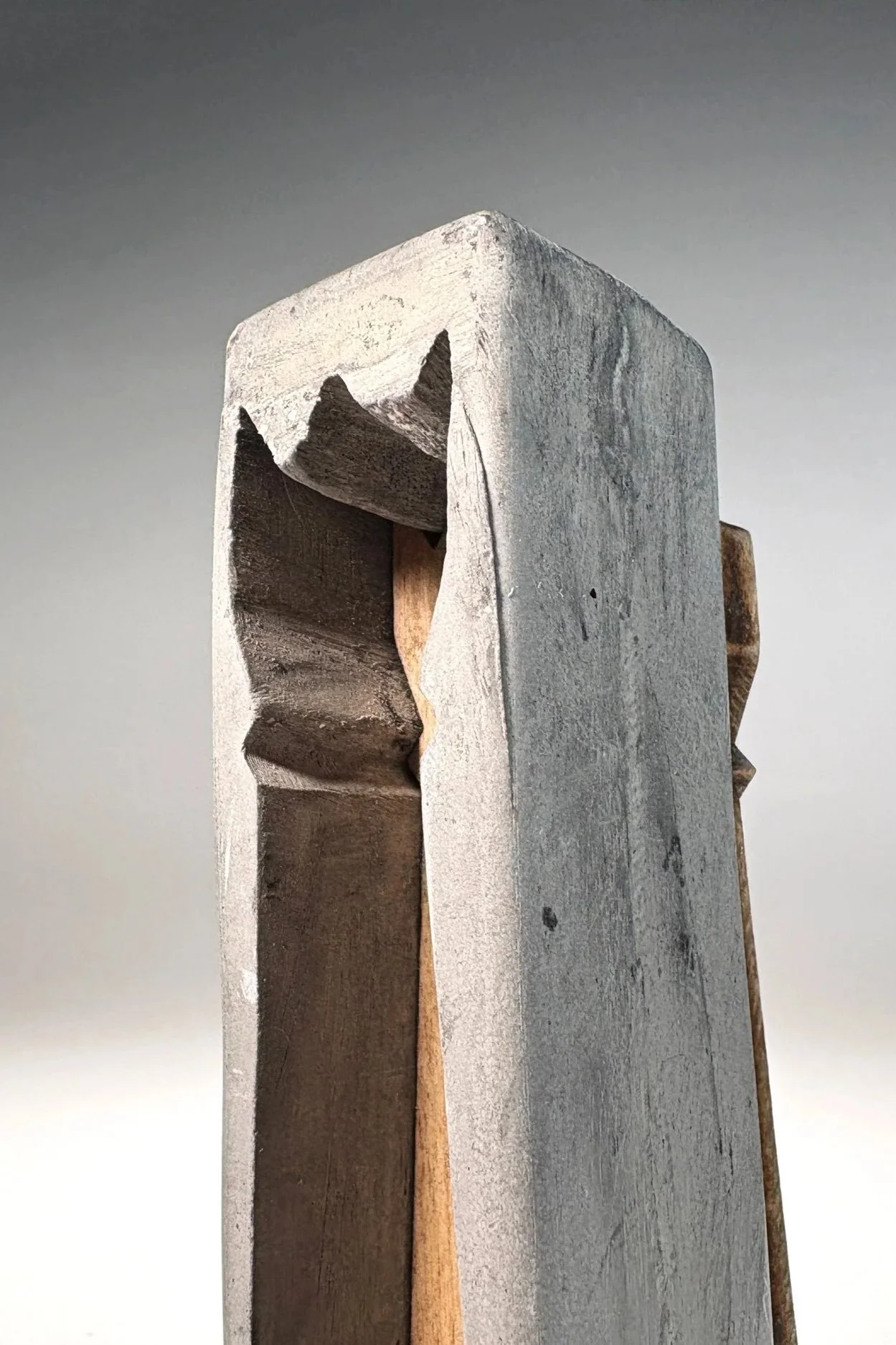

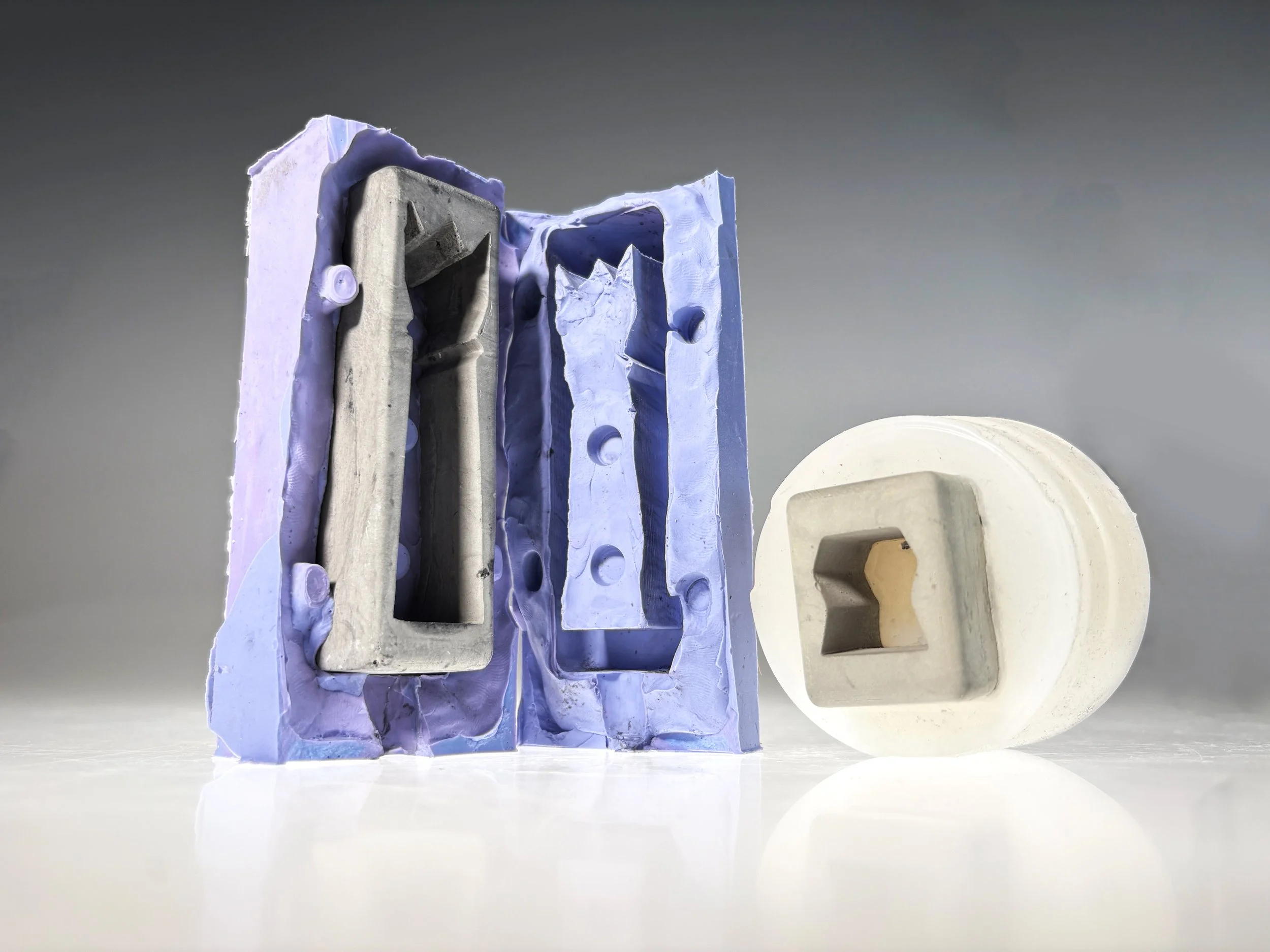

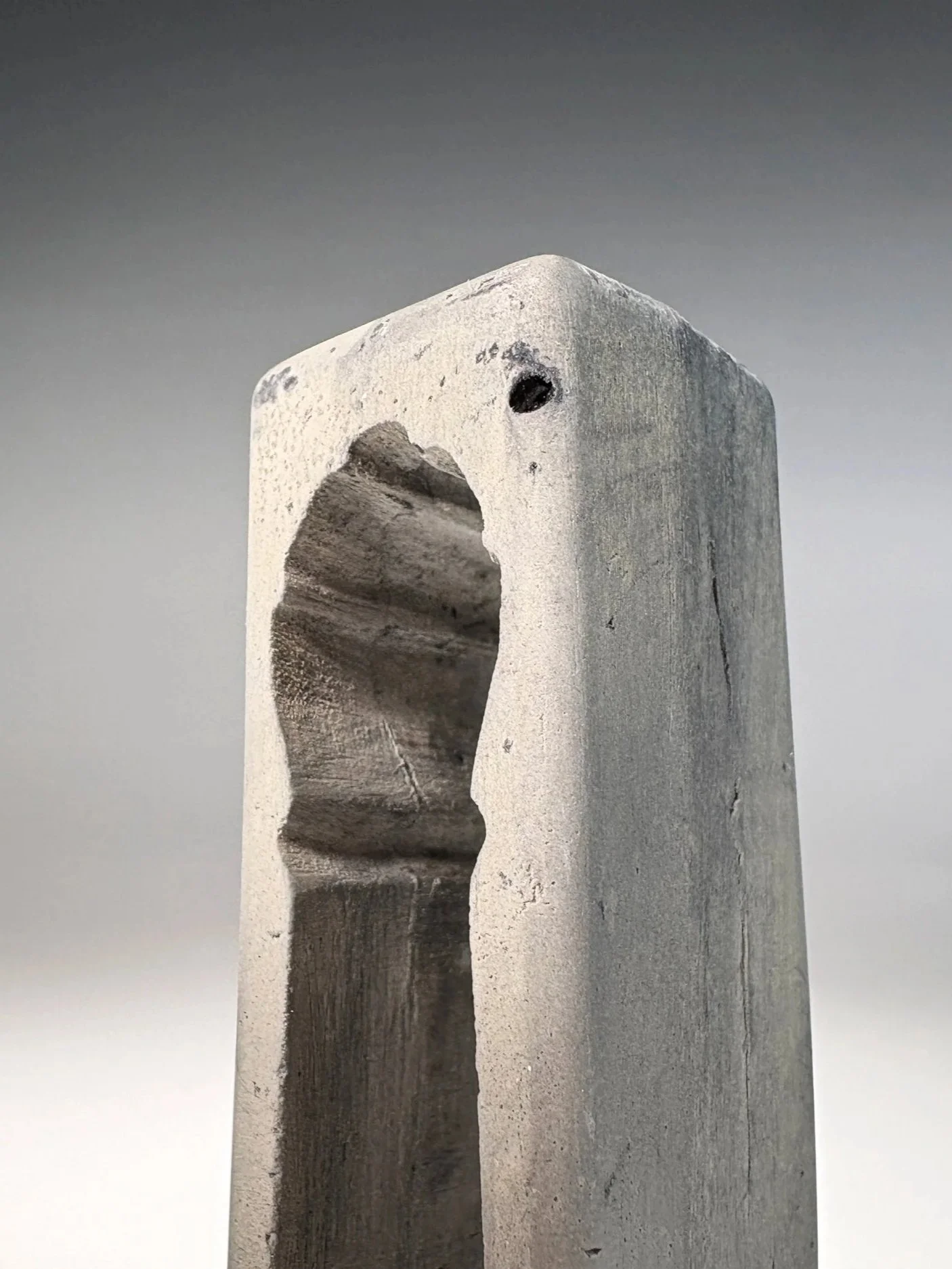

I sanded down the final 3D printed pieces and cast them in silicone so I could begin to use one of my final materials: concrete. The concrete was poured into the molds, creating the hollow shells I was looking for to contain the opposing side’s wooden figures, which were created by laser cutting, laminating, and staining wood.
Final Deliverables

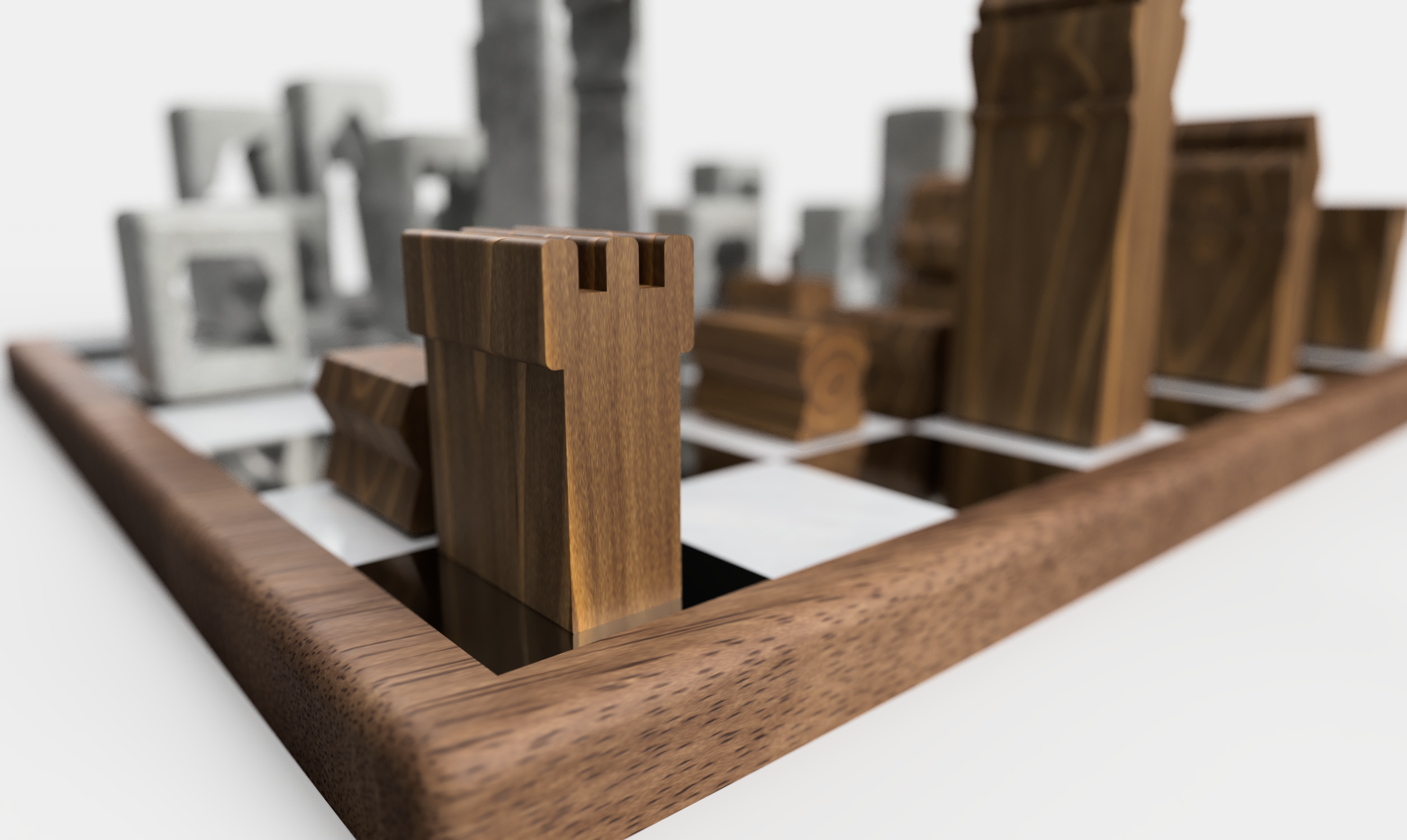

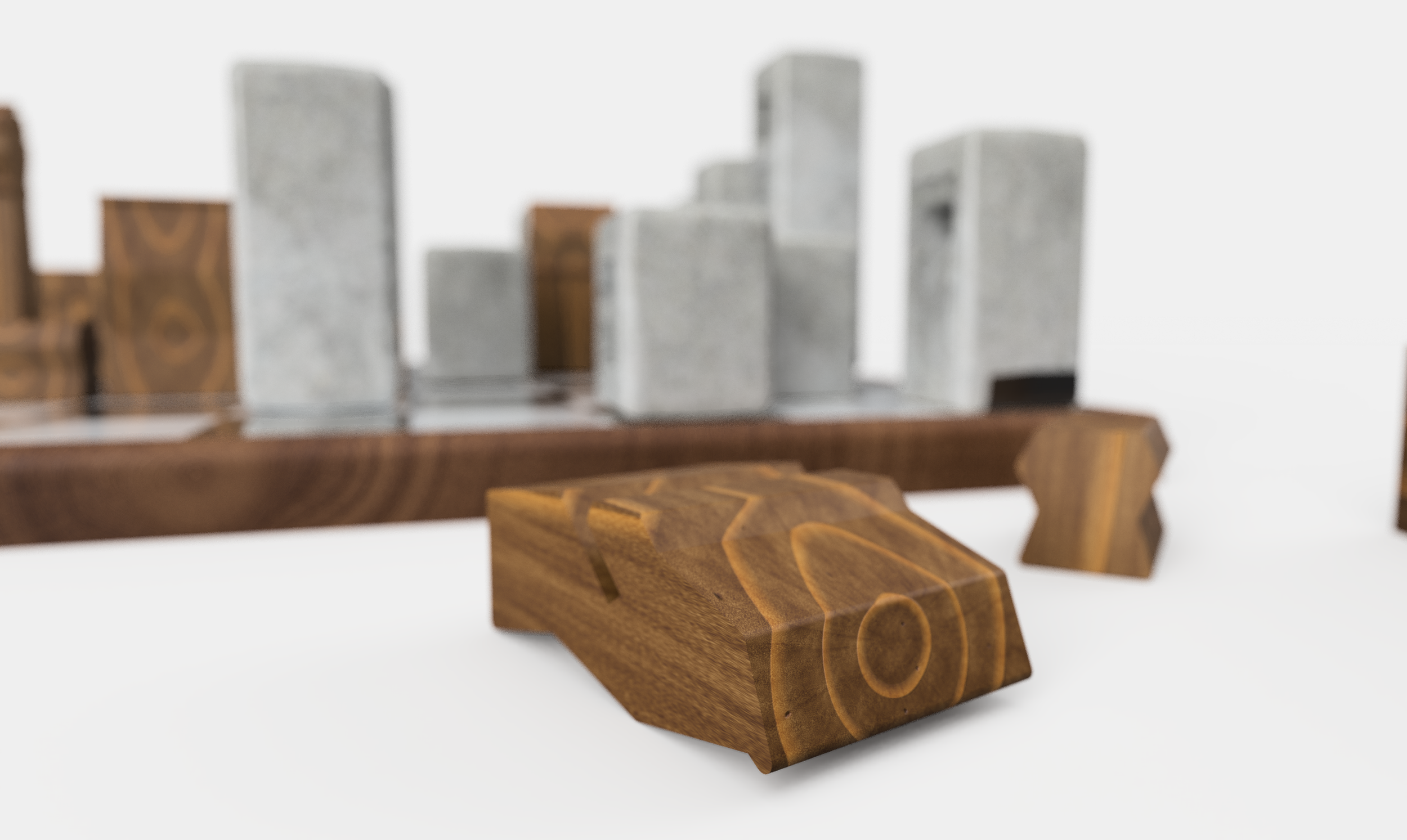

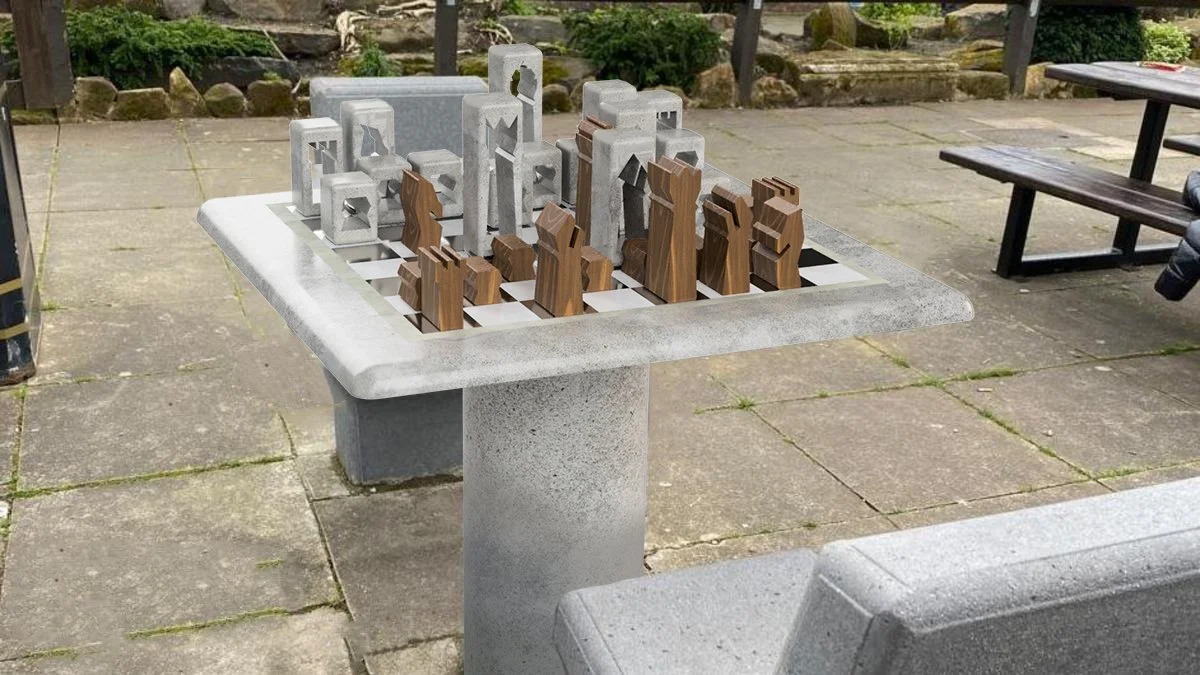

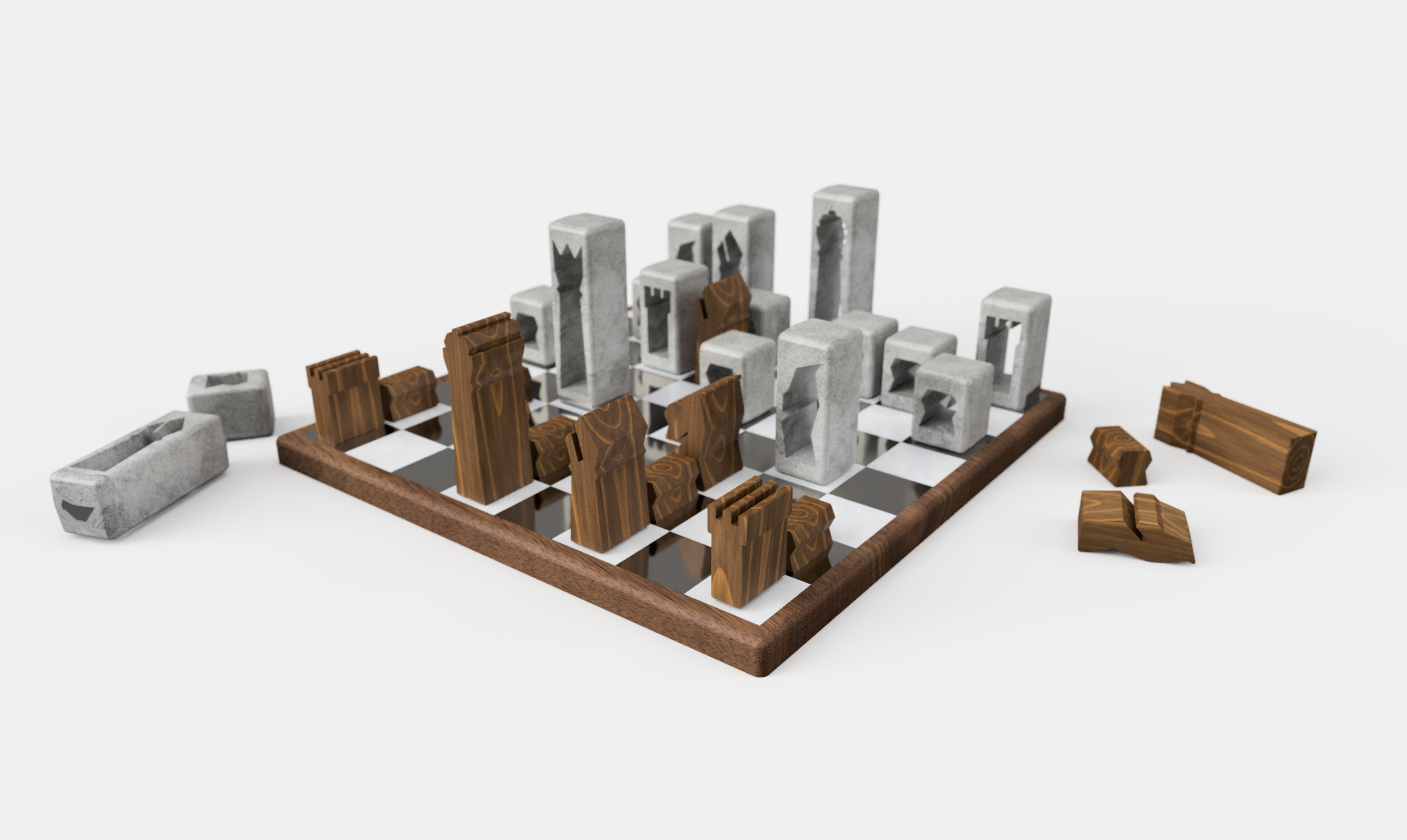

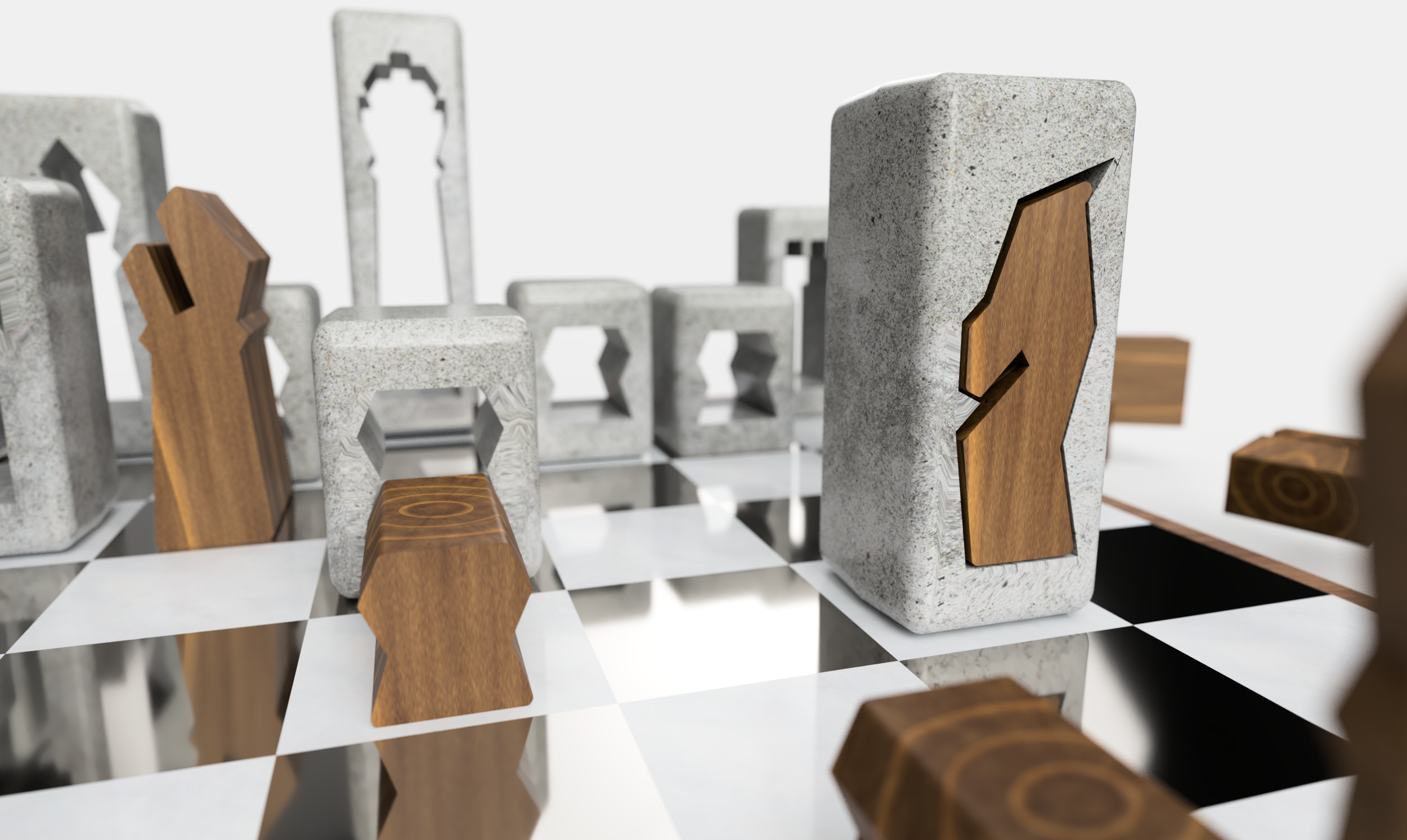

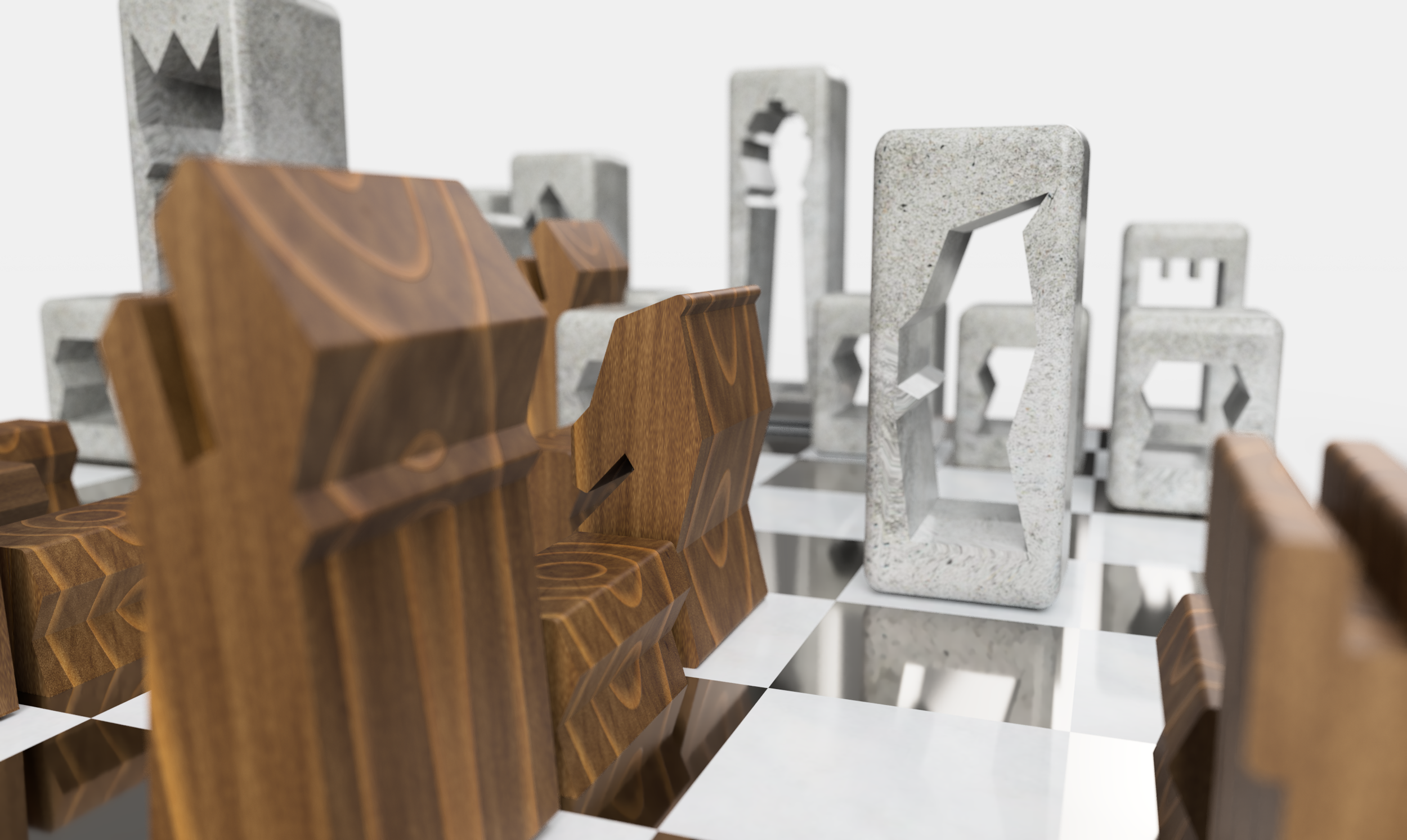

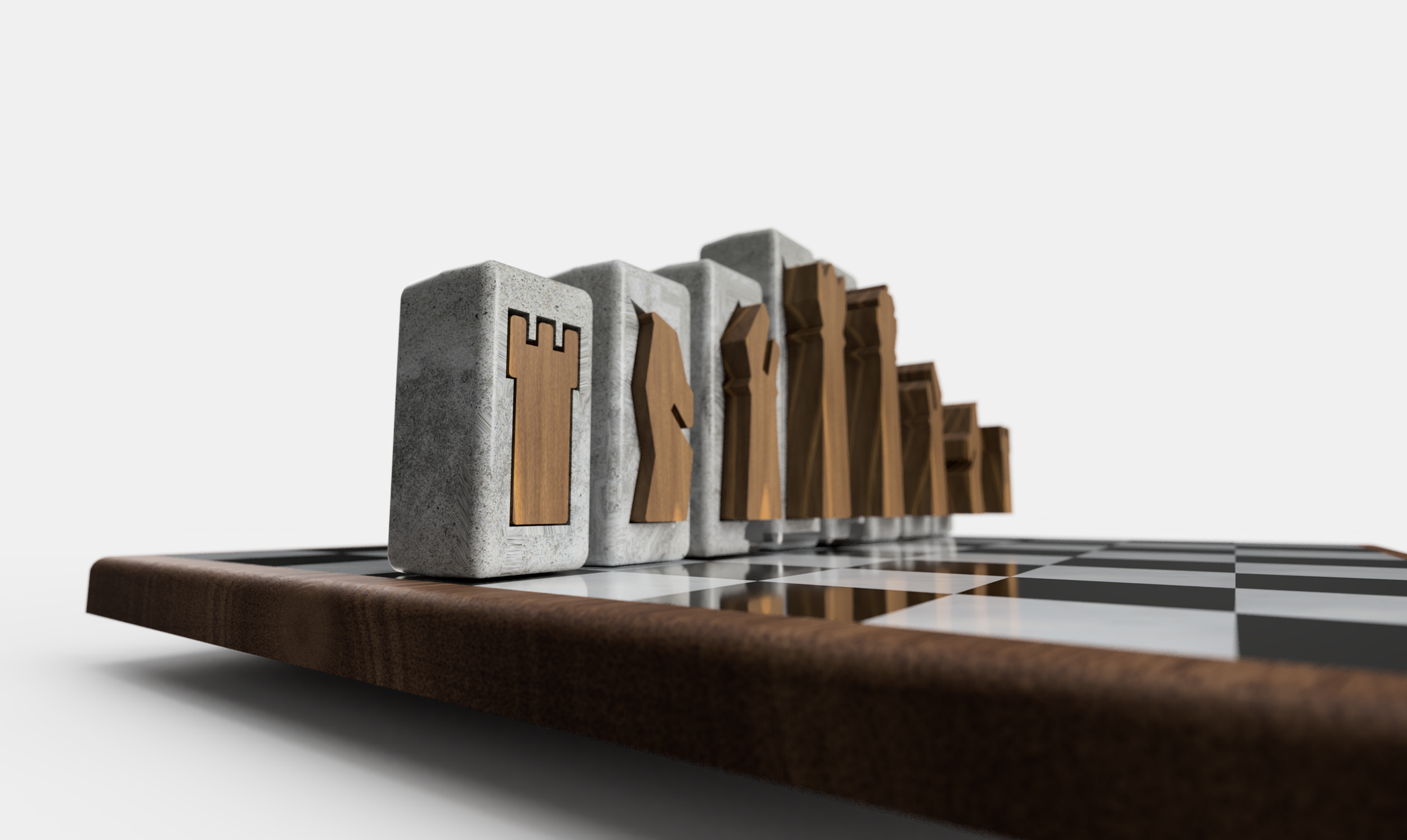

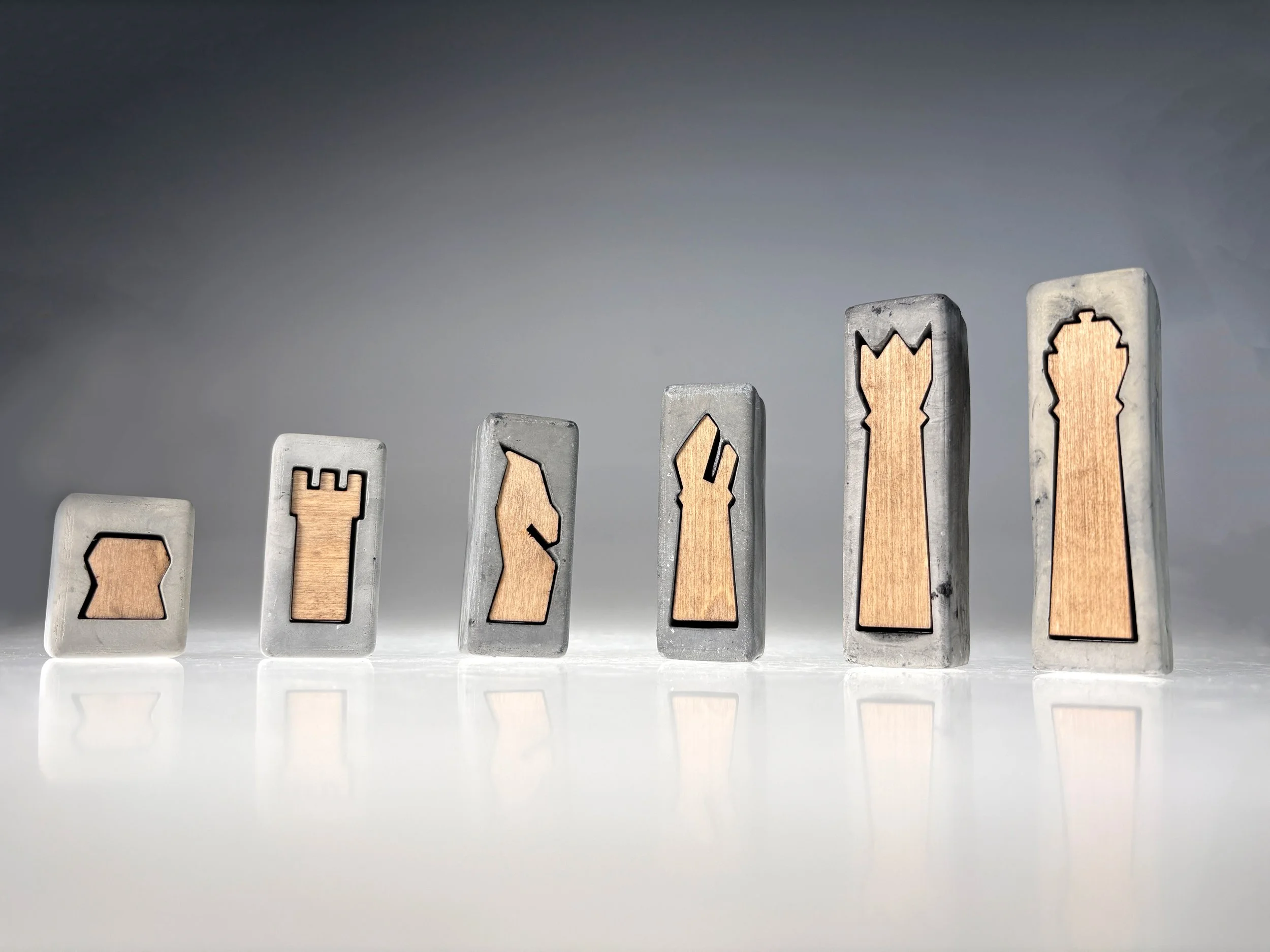

In the end, this chess set seamlessly blends materials and provides a cohesive front to consumers. It explores the ideas of hierarchy in the height of the pieces, and family of form with similar shapes and angles. The wooden pieces can be stored away inside of the concrete shells for transportation, and then just as easily be removed for play on the go.
